उत्पाद विवरण:
|
| ड्राइविंग प्रकार: | बिजली का रास्ता | नीचे कागज की मोटाई की मोटाई: | 300gsm-10mm कार्डबोर्ड और BE बांसुरी |
|---|---|---|---|
| लाइन कार्य गति(एम/मिनट): | 150-160 | एफओबी अवधि की कीमत: | 80000USD |
| न्यूनतम शीट का आकार: | 1500: 40*45 सेमी 1700: 45*45 सेमी | फाड़ना प्रकार: | कार्डबोर्ड+कोरगेटर+कोरगेटर |
| अधिकतम सामग्री आकार: | 1500*1500 मिमी और 1700*1700 मिमी | गोंद रोलर आकार: | अनिलॉक्स रोलर 160 मिमी व्यास |
| समायोजन: | बुद्धिमान | ||
| प्रमुखता देना: | Electrical Driving Sheet To Sheet Laminating Machine,300gsm-10mm Cardboard Corrugated Paper Laminator,B E FLUTE Cardboard Laminating Machine |
||
| Model | SFC1500 | SFC1700 | SFC1900 | SFC2200 |
|---|---|---|---|---|
| Max size | 1500×1500mm | 1700×1700mm | 1900×1900mm | 2200×2100mm |
| Min size | 360×380mm | 380×400mm | 450×450mm | 500×500mm |
| Top Paper | 120-800g | |||
| Bottom paper | 300gsm-10mm Corrugated board and cardboard | |||
| Max speed | 150m/min | |||
| Power | 22kw | 25kw | 27KW | 30KW |
| Stick accuracy | ±1-2.5mm | |||

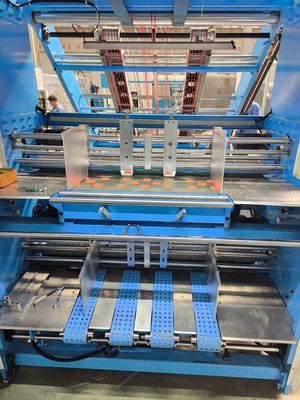

Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.
Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.
CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.
Pre-pile system with touch screen configuration for efficient setup and orientation.

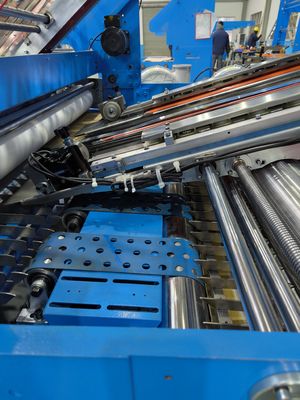

Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

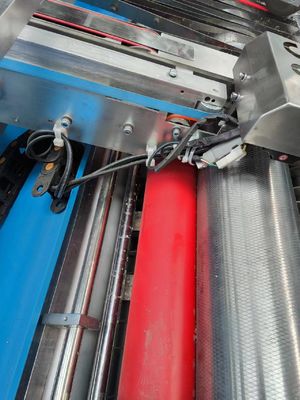

Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.
Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.
