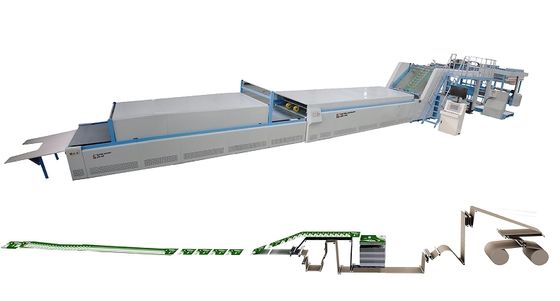

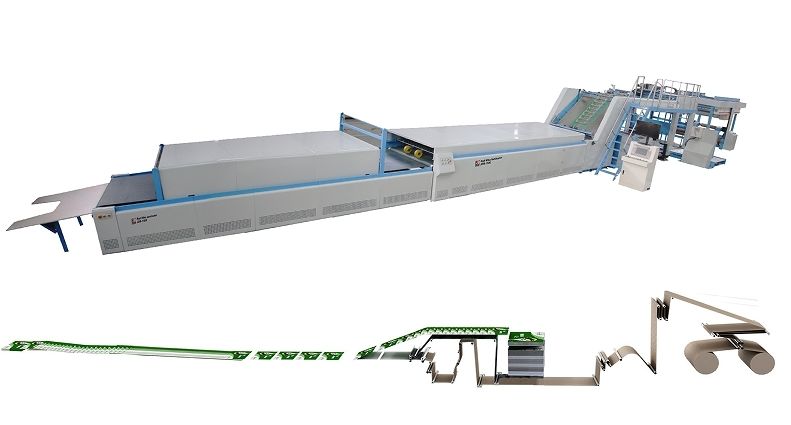

Reel to sheet litho-laminator
The product line length: 30m
Function Introduction
● Both white latex glue and starch glue can be used as adhesive for laminating.
● High-speed paper splicing machine, no speed reduction during paper splicing, zero paper tail, and less waste.
● Continuous feeding of single-sheet face paper for color printing, no need to stop the machine when changing stacks.
● Edge trimming of corrugated paper, automatic waste removal.
● Servo synchronous cross-cutting machine, color mark detection, precise positioning and length control.
● Servo high-speed laminating machine, automatic synchronization of base paper and face paper.
● High-speed stacking machine, automatic stacking in both directions.
● Video monitoring at the main operation position to promptly detect equipment abnormalities.
● Equipped with a remote diagnosis system for convenient machine maintenance.
Parameter:
● Maximum paper width: 1450mm/1650mm
● Minimum paper width: 500mm
● Maximum paperboard size (length x width): 1450 x 1450 mm / 1650 x 1650
● Minimum paperboard size (length x width): 500 x 500 mm
● Maximum line speed: 150m/min
● Maximum laminating speed: 12000P/h
● Single sheet laminating accuracy: ±1mm (front lay), ±0.5mm (side lay)
● Maximum collection speed: 12000P/h (E flute), 10000P/h (B flute)
